RAI Bench

RAI Bench is a comprehensive package that both provides benchmarks with ready-to-use tasks and offers a framework for creating new tasks. It's designed to evaluate the performance of AI agents in various environments.

Available Benchmarks

• Manipulation O3DE Benchmark
• Tool Calling Agent Benchmark
• VLM Benchmark

Manipulation O3DE Benchmark

Evaluates agent performance in robotic arm manipulation tasks within the O3DE simulation environment. The benchmark evaluates how well agents can process sensor data and use tools to manipulate objects in the environment.

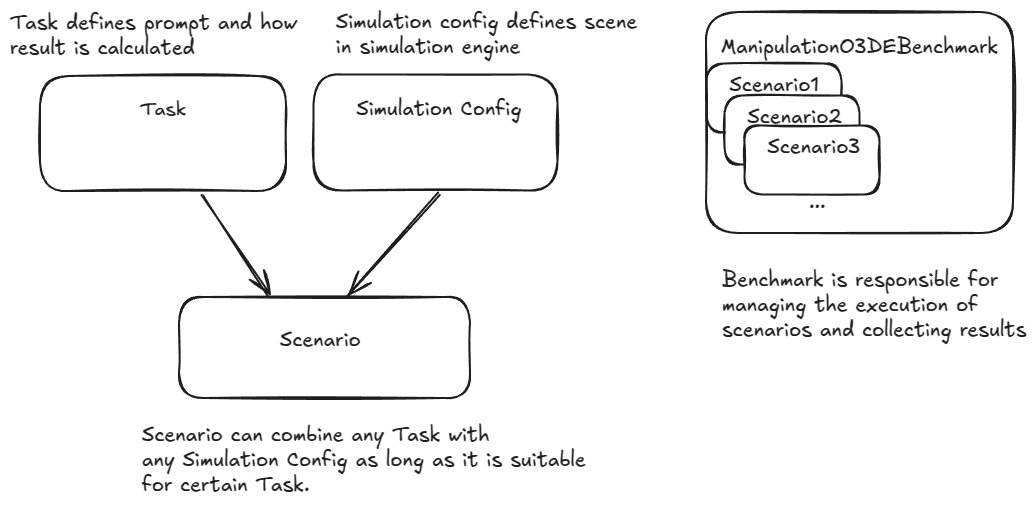

Framework Components

Manipulation O3DE Benchmark provides a framework for creating custom tasks and scenarios with these core components:

Task

The Task class is an abstract base class that defines the interface for tasks used in this benchmark. Each concrete Task must implement:

• prompts that will be passed to the agent
• validation of simulation configurations
• calculating results based on scene state

Scenario

A Scenario represents a specific test case combining:

• A task to be executed
• A simulation configuration

ManipulationO3DEBenchmark

The ManipulationO3DEBenchmark class manages the execution of scenarios and collects results. It provides:

• Scenario execution management
• Performance metrics tracking
• Logs and results
• Robotic stack needed, provided as LaunchDescription

Available Tasks

The benchmark includes several predefined manipulation tasks:

1. MoveObjectsToLeftTask - Move specified objects to the left side of the table

2. PlaceObjectAtCoordTask - Place specified objects at specific coordinates

3. PlaceCubesTask - Place specified cubes adjacent to each other

4. BuildCubeTowerTask - Stack specified cubes to form a tower

5. GroupObjectsTask - Group specified objects of specified types together

Tasks are parametrizable so you can configure which objects should be manipulated and how much precision is needed to complete a task.

Tasks are scored on a scale from 0.0 to 1.0, where:

• 0.0 indicates no improvement or worse placement than the starting one
• 1.0 indicates perfect completion

The score is typically calculated as:

score = (correctly_placed_now - correctly_placed_initially) / initially_incorrect

Available Scene Configs and Scenarios

You can find predefined scene configs in rai_bench/manipulation_o3de/predefined/configs/.

Predefined scenarios can be imported, for example, choosing tasks by difficulty:

from rai_bench.manipulation_o3de import get_scenarios

get_scenarios(levels=["easy", "medium"])

Tool Calling Agent Benchmark

Evaluates agent performance independently from any simulation, based only on tool calls that the agent makes. To make it independent from simulations, this benchmark introduces tool mocks which can be adjusted for different tasks. This makes the benchmark more universal and a lot faster.

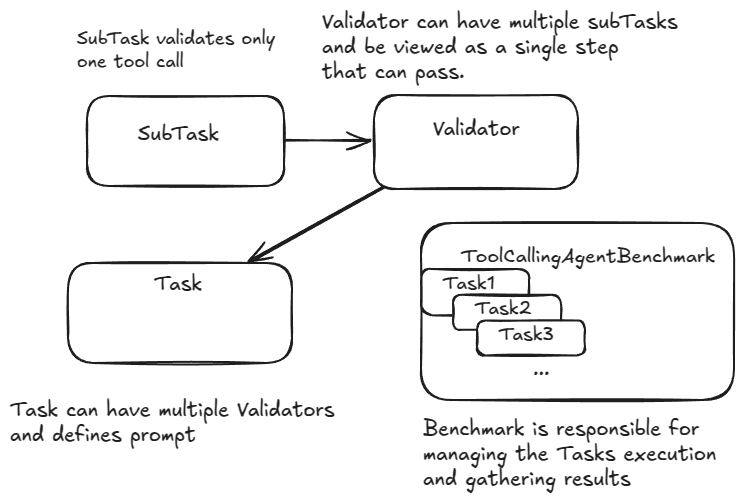

Framework Components

SubTask

The SubTask class is used to validate just one tool call. Following classes are available:

• CheckArgsToolCallSubTask - verify if a certain tool was called with expected arguments
• CheckTopicFieldsToolCallSubTask - verify if a message published to ROS2 topic was of proper type and included expected fields
• CheckServiceFieldsToolCallSubTask - verify if a message published to ROS2 service was of proper type and included expected fields
• CheckActionFieldsToolCallSubTask - verify if a message published to ROS2 action was of proper type and included expected fields

Validator

The Validator class can combine single or multiple subtasks to create a single validation step. Following validators are available:

• OrderedCallsValidator - requires a strict order of subtasks. The next subtask will be validated only when the previous one was completed. Validator passes when all subtasks pass.
• NotOrderedCallsValidator - doesn't enforce order of subtasks. Every subtask will be validated against every tool call. Validator passes when all subtasks pass.
• OneFromManyValidator - passes when any one of the given subtasks passes.

Task

A Task represents a specific prompts and set of tools available. A list of validators is assigned to validate the performance.

Task class definition

rai_bench.tool_calling_agent.interfaces.Task

Bases: ABC

Source code in rai_bench/tool_calling_agent/interfaces.py

class Task(ABC):
    complexity: Literal["easy", "medium", "hard"]
    type: str
    recursion_limit: int = DEFAULT_RECURSION_LIMIT

    def __init__(
        self,
        validators: List[Validator],
        task_args: TaskArgs,
        logger: loggers_type | None = None,
    ) -> None:
        """
        Abstract base class representing a complete task to be validated.

        A Task consists of multiple Validators, where each Validator can be treated as a single
        step that is scored atomically. Each Task has a consistent prompt and available tools,
        with validation methods that can be parameterized.

        Attributes
        ----------
        complexity : Literal["easy", "medium", "hard"]
            difficulty level of the task
        type : str
            type identifier for the task
        recursion_limit : int, optional
            maximum recursion depth allowed, by default DEFAULT_RECURSION_LIMIT

        Parameters
        ----------
        validators : List[Validator]
            List of validators that will be applied in sequence.
        task_args : TaskArgs
            Configuration parameters for the task specified by user
        logger : logging.Logger
            Logger for recording task validation results and errors.
        """
        if logger:
            self.logger = logger
        else:
            self.logger = logging.getLogger(__name__)
        self.validators = validators
        self.extra_tool_calls = task_args.extra_tool_calls
        self.prompt_detail = task_args.prompt_detail
        self.n_shots = task_args.examples_in_system_prompt

    def set_logger(self, logger: loggers_type):
        self.logger = logger
        for validator in self.validators:
            validator.logger = logger

    def get_tool_calls_from_invoke(self, response: dict[str, Any]) -> list[ToolCall]:
        """Extracts all tool calls from the response, flattened across all AI messages."""
        tool_calls: List[ToolCall] = []
        for msg in response["messages"]:
            if isinstance(msg, AIMessage):
                tool_calls.extend(msg.tool_calls)
        return tool_calls

    def get_tool_calls_from_messages(
        self, messages: List[BaseMessage]
    ) -> list[ToolCall]:
        """Extracts all tool calls from the response, flattened across all AI messages."""
        tool_calls: List[ToolCall] = []
        for msg in messages:
            if isinstance(msg, AIMessage):
                tool_calls.extend(msg.tool_calls)
        return tool_calls

    def dump_validators(self) -> List[ValidatorResult]:
        return [val.dump_results() for val in self.validators]

    @property
    @abstractmethod
    def available_tools(self) -> List[BaseTool]:
        """List of tool available for the agent"""
        pass

    @property
    @abstractmethod
    def optional_tool_calls_number(self) -> int:
        """Optional tool calls means calls that are not considered error.
        For example listing topics at the beginning."""
        pass

    @property
    def max_tool_calls_number(self) -> int:
        """maxiumum number of call to still pass task.
        Includes extra tool calls params.
        and optional tool calls number which depends on task.
        """
        return (
            self.required_calls
            + self.optional_tool_calls_number
            + self.extra_tool_calls
        )

    @property
    def additional_calls(self) -> int:
        """number of additional calls that can be done to still pass task.
        Includes extra tool calls params.
        and optional tool calls number which depends on task.
        """
        return self.optional_tool_calls_number + self.extra_tool_calls

    @property
    def required_calls(self) -> int:
        """Minimal number of calls required to complete task"""
        total = 0
        for val in self.validators:
            total += len(val.subtasks)
        return total

    @abstractmethod
    def get_system_prompt(self) -> str:
        """Get the system prompt that will be passed to agent

        Returns
        -------
        str
            System prompt
        """
        pass

    @abstractmethod
    def get_base_prompt(self) -> str:
        """
        Get the base task instruciton,
        it will be used to identify task in results processing
        """
        pass

    @abstractmethod
    def get_prompt(self) -> str:
        """Get the task instruction - the prompt that will be passed to agent.

        Returns
        -------
        str
            Prompt
        """
        pass

    def validate(self, tool_calls: List[ToolCall]):
        """Validate a list of tool calls against all validators in sequence"""
        self.logger.debug(
            f"required_calls: {self.required_calls}, extra_calls {self.extra_tool_calls}"
        )
        remaining_tool_calls = tool_calls[: self.max_tool_calls_number].copy()
        self.logger.debug(f"Tool calls to validate: {remaining_tool_calls}")

        done_properly = 0
        for validator in self.validators:
            if_success, remaining_tool_calls = validator.validate(
                tool_calls=remaining_tool_calls
            )

            if if_success:
                done_properly += 1

        return done_properly / len(self.validators)

additional_calls property

number of additional calls that can be done to still pass task. Includes extra tool calls params. and optional tool calls number which depends on task.

available_tools abstractmethod property

List of tool available for the agent

max_tool_calls_number property

maxiumum number of call to still pass task. Includes extra tool calls params. and optional tool calls number which depends on task.

optional_tool_calls_number abstractmethod property

Optional tool calls means calls that are not considered error. For example listing topics at the beginning.

required_calls property

Minimal number of calls required to complete task

__init__(validators, task_args, logger=None)

Abstract base class representing a complete task to be validated.

A Task consists of multiple Validators, where each Validator can be treated as a single step that is scored atomically. Each Task has a consistent prompt and available tools, with validation methods that can be parameterized.

Attributes:

Name	Type	Description
complexity	Literal['easy', 'medium', 'hard']	difficulty level of the task
type	str	type identifier for the task
recursion_limit	(int, optional)	maximum recursion depth allowed, by default DEFAULT_RECURSION_LIMIT

Parameters:

Name	Type	Description	Default
validators	List[Validator]	List of validators that will be applied in sequence.	required
task_args	TaskArgs	Configuration parameters for the task specified by user	required
logger	Logger	Logger for recording task validation results and errors.	None

Source code in rai_bench/tool_calling_agent/interfaces.py

def __init__(
    self,
    validators: List[Validator],
    task_args: TaskArgs,
    logger: loggers_type | None = None,
) -> None:
    """
    Abstract base class representing a complete task to be validated.

    A Task consists of multiple Validators, where each Validator can be treated as a single
    step that is scored atomically. Each Task has a consistent prompt and available tools,
    with validation methods that can be parameterized.

    Attributes
    ----------
    complexity : Literal["easy", "medium", "hard"]
        difficulty level of the task
    type : str
        type identifier for the task
    recursion_limit : int, optional
        maximum recursion depth allowed, by default DEFAULT_RECURSION_LIMIT

    Parameters
    ----------
    validators : List[Validator]
        List of validators that will be applied in sequence.
    task_args : TaskArgs
        Configuration parameters for the task specified by user
    logger : logging.Logger
        Logger for recording task validation results and errors.
    """
    if logger:
        self.logger = logger
    else:
        self.logger = logging.getLogger(__name__)
    self.validators = validators
    self.extra_tool_calls = task_args.extra_tool_calls
    self.prompt_detail = task_args.prompt_detail
    self.n_shots = task_args.examples_in_system_prompt

get_base_prompt() abstractmethod

Get the base task instruciton, it will be used to identify task in results processing

Source code in rai_bench/tool_calling_agent/interfaces.py

@abstractmethod
def get_base_prompt(self) -> str:
    """
    Get the base task instruciton,
    it will be used to identify task in results processing
    """
    pass

get_prompt() abstractmethod

Get the task instruction - the prompt that will be passed to agent.

Returns:

Type	Description
str	Prompt

Source code in rai_bench/tool_calling_agent/interfaces.py

@abstractmethod
def get_prompt(self) -> str:
    """Get the task instruction - the prompt that will be passed to agent.

    Returns
    -------
    str
        Prompt
    """
    pass

get_system_prompt() abstractmethod

Get the system prompt that will be passed to agent

Returns:

Type	Description
str	System prompt

Source code in rai_bench/tool_calling_agent/interfaces.py

@abstractmethod
def get_system_prompt(self) -> str:
    """Get the system prompt that will be passed to agent

    Returns
    -------
    str
        System prompt
    """
    pass

get_tool_calls_from_invoke(response)

Extracts all tool calls from the response, flattened across all AI messages.

Source code in rai_bench/tool_calling_agent/interfaces.py

def get_tool_calls_from_invoke(self, response: dict[str, Any]) -> list[ToolCall]:
    """Extracts all tool calls from the response, flattened across all AI messages."""
    tool_calls: List[ToolCall] = []
    for msg in response["messages"]:
        if isinstance(msg, AIMessage):
            tool_calls.extend(msg.tool_calls)
    return tool_calls

get_tool_calls_from_messages(messages)

Extracts all tool calls from the response, flattened across all AI messages.

Source code in rai_bench/tool_calling_agent/interfaces.py

def get_tool_calls_from_messages(
    self, messages: List[BaseMessage]
) -> list[ToolCall]:
    """Extracts all tool calls from the response, flattened across all AI messages."""
    tool_calls: List[ToolCall] = []
    for msg in messages:
        if isinstance(msg, AIMessage):
            tool_calls.extend(msg.tool_calls)
    return tool_calls

validate(tool_calls)

Validate a list of tool calls against all validators in sequence

Source code in rai_bench/tool_calling_agent/interfaces.py

def validate(self, tool_calls: List[ToolCall]):
    """Validate a list of tool calls against all validators in sequence"""
    self.logger.debug(
        f"required_calls: {self.required_calls}, extra_calls {self.extra_tool_calls}"
    )
    remaining_tool_calls = tool_calls[: self.max_tool_calls_number].copy()
    self.logger.debug(f"Tool calls to validate: {remaining_tool_calls}")

    done_properly = 0
    for validator in self.validators:
        if_success, remaining_tool_calls = validator.validate(
            tool_calls=remaining_tool_calls
        )

        if if_success:
            done_properly += 1

    return done_properly / len(self.validators)

As you can see, the framework is very flexible. Any SubTask can be combined into any Validator that can be later assigned to any Task.

Every Task needs to define it's prompt and system prompt, what tools agent will have available, how many tool calls are required to complete it and how many optional tool calls are possible.

Optional tool calls mean that a certain tool calls is not obligatory to pass the Task, but shoudn't be considered an error, example: GetROS2RGBCameraTask which has prompt: Get RGB camera image. requires making one tool call with get_ros2_image tool. But listing topics before doing it is a valid approach, so in this case opitonal tool calls is 1.

ToolCallingAgentBenchmark

The ToolCallingAgentBenchmark class manages the execution of tasks and collects results.

Available Tasks

There are predefined Tasks available which are grouped by categories:

• Basic - require retrieving info from certain topics
• Manipulation
• Custom Interfaces - requires using messages with custom interfaces

Every Task has assigned the complexity which reflects the difficulty.

When creating a Task, you can define few params:

class TaskArgs(BaseModel):
    """Holds the configurations specified by user"""

    extra_tool_calls: int = 0
    prompt_detail: Literal["brief", "descriptive"] = "brief"
    examples_in_system_prompt: Literal[0, 2, 5] = 0

• examples_in_system_prompt - How many examples there are in system prompts, example:

  • 0: You are a ROS 2 expert that want to solve tasks. You have access to various tools that allow you to query the ROS 2 system. Be proactive and use the tools to answer questions.
  • 2: You are a ROS 2 expert that want to solve tasks. You have access to various tools that allow you to query the ROS 2 system. Be proactive and use the tools to answer questions. Example of tool calls: get_ros2_message_interface, args: {'msg_type': 'geometry_msgs/msg/Twist'} publish_ros2_message, args: {'topic': '/cmd_vel', 'message_type': 'geometry_msgs/msg/Twist', 'message': {linear: {x: 0.5, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 1.0}}}

• prompt_detail - How descriptive should the Task prompt be, example:

  • brief: "Get all camera images"

  • descriptive: "Get all camera images from all available camera sources in the system. This includes both RGB color images and depth images. You can discover what camera topics are available and capture images from each."

    Descriptive prompts provides guidance and tips.

• extra_tool_calls - How many extra tool calls an agent can make and still pass the Task, example:

  • GetROS2RGBCameraTask has 1 required tool call and 1 optional. When extra_tool_calls set to 5, agent can correct himself couple times and still pass even with 7 tool calls. There can be 2 types of invalid tool calls, first when the tool is used incorrectly and agent receives an error - this allows him to correct himself easier. Second type is when tool is called properly but it is not the tool that should be called or it is called with wrong params. In this case agent won't get any error so it will be harder for him to correct, but BOTH of these cases are counted as extra tool call.

If you want to know details about every task, visit rai_bench/tool_calling_agent/tasks

VLM Benchmark

The VLM Benchmark is a benchmark for VLM models. It includes a set of tasks containing questions related to images and evaluates the performance of the agent that returns the answer in the structured format.

Running

To run the benchmark:

cd rai
source setup_shell.sh
python src/rai_bench/rai_bench/examples/vlm_benchmark.py --model-name gemma3:4b --vendor ollama
